Specifications

Size Guide

Bike Size	One Size
User Height Range	Regular: 4'9" ~ 6'5"

Electronics

Motor	48V, 500W, 55Nm
Battery	48V, 486Wh, IPX7, Certificated by UL 2271
Cell	18650 cell, Certificated by UL 2580
Charger	48V, 2A Fast Charger
Sensor	Cadence Sensor

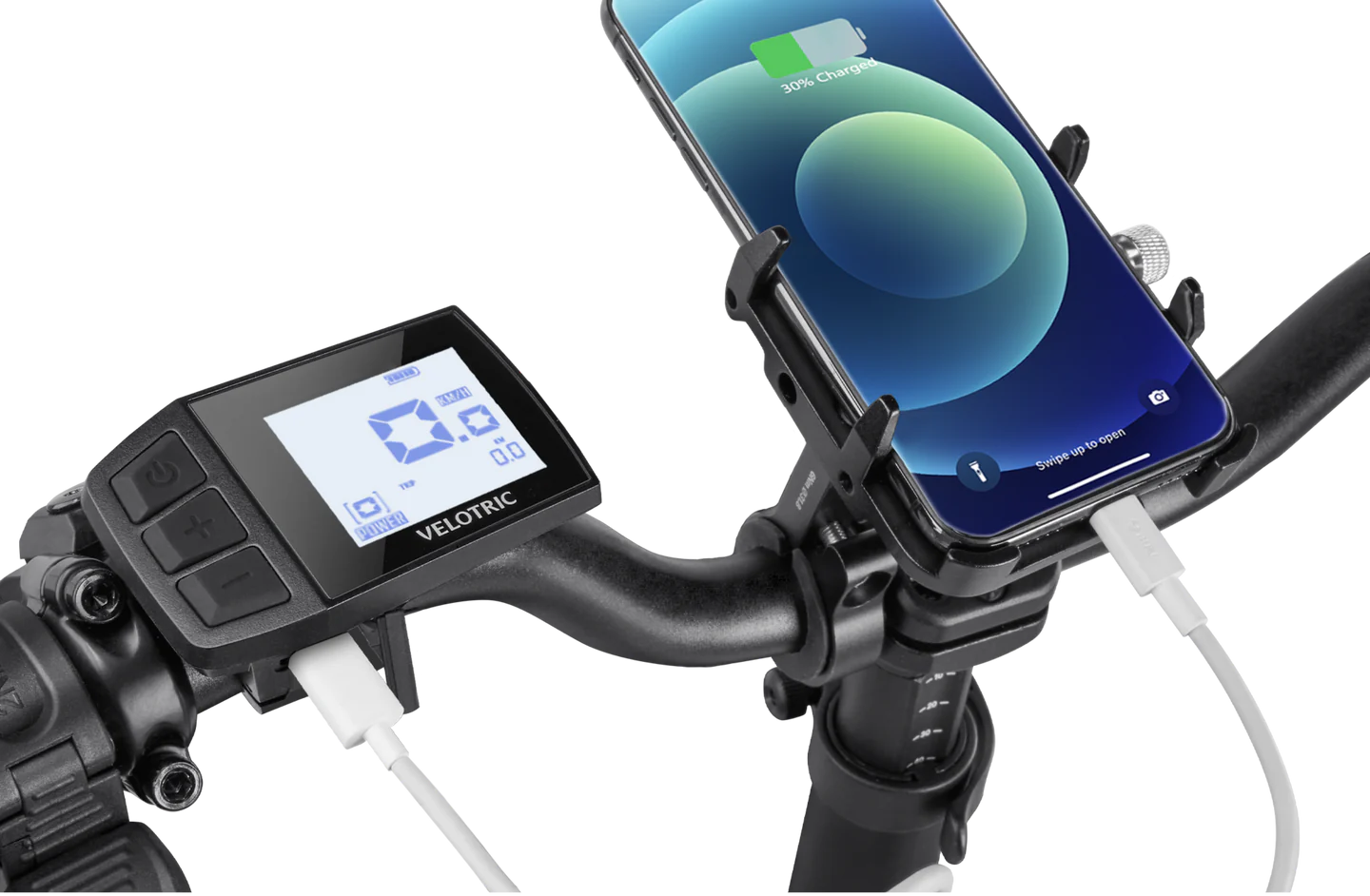

Display	1.8" LCD, High brightness
USB Port	USB Type-A phone charge
Throttle	Thumb-control, removable
Pedal Assist	5 Levels
Walk Mode	2.9 MPH
Front Light	60 Lux high-output integrated LED, adjustable angle
Rear Light	Braking Indicator, integrated with rear fender
Water Resistant	IPX6

Drivetrain

Chainrings	52T
Crankset	Aluminum Alloy, 170mm
Cassette	7-speed
Rear Derailleur	SHIMANO 7-speed
Shift Lever	SHIMANO 7-speed
Chain	7-speed

Wheel

Rims	Double-wall Aluminum Alloy
Front Hub	Aluminum Alloy, nutted
Tire	20x3.0" eBike puncture resistant tires

Supports

Fenders	Steel, front and rear full coverage
Pedals	Plastic, foldable
Kickstand	Aluminum Alloy, included, rear mount

Certification

UL Certification	UL 2849
ISO Standard	ISO 4210

Frameset

Frame	Aluminum Alloy
Fork	Coil suspension 60mm travel with Lock-out

Speed & Range

Default Speed	20 MPH
Max Speed Adjustable Range	12~28 MPH
Class	1/2/3
Throttle Range	40 Miles
Pedal Assist Range	48 Miles

Brake

Brake	Hydraulic Disc Brake
Rotors	180mm front and rear
Brake Levers	Aluminum Alloy, with power cutoff

Cockpit

Handlebar	Aluminum Alloy, Φ25.4mm, 660mm
Grips	Durable ergonomic grips, lockable
Saddle	VELOTRIC urban comfort ergonomic seat
Seatpost	Aluminum Alloy, φ30.9mm, 350mm
Clamp	Aluminum Alloy, quick release

Weight & Load

Bike Weight	61lbs
Max Bike Load Capacity	440lbs

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
