Specifications

Electronics

Motor Hub	350W, Peak 600W, 45Nm
Battery	36V, 9.8Ah, 352.8Wh
Cell	Samsung 21700
Charger	36V, 2.0A, Operates on 100V-240V AC, 50-60Hz
Charging Time	0-80% 4 Hours, 0-100% 6 Hours
Sensor	2-Side Torque sensor

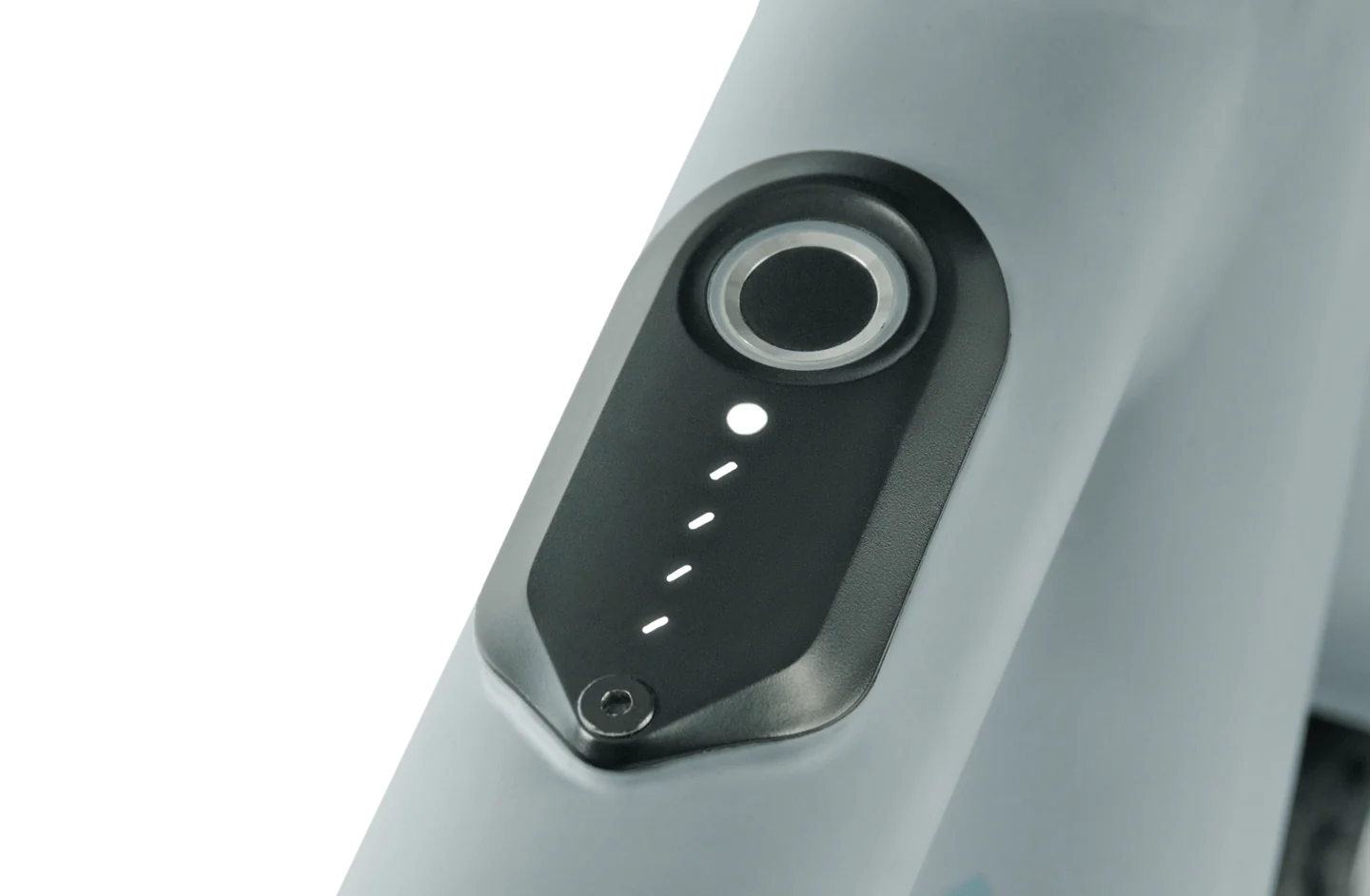

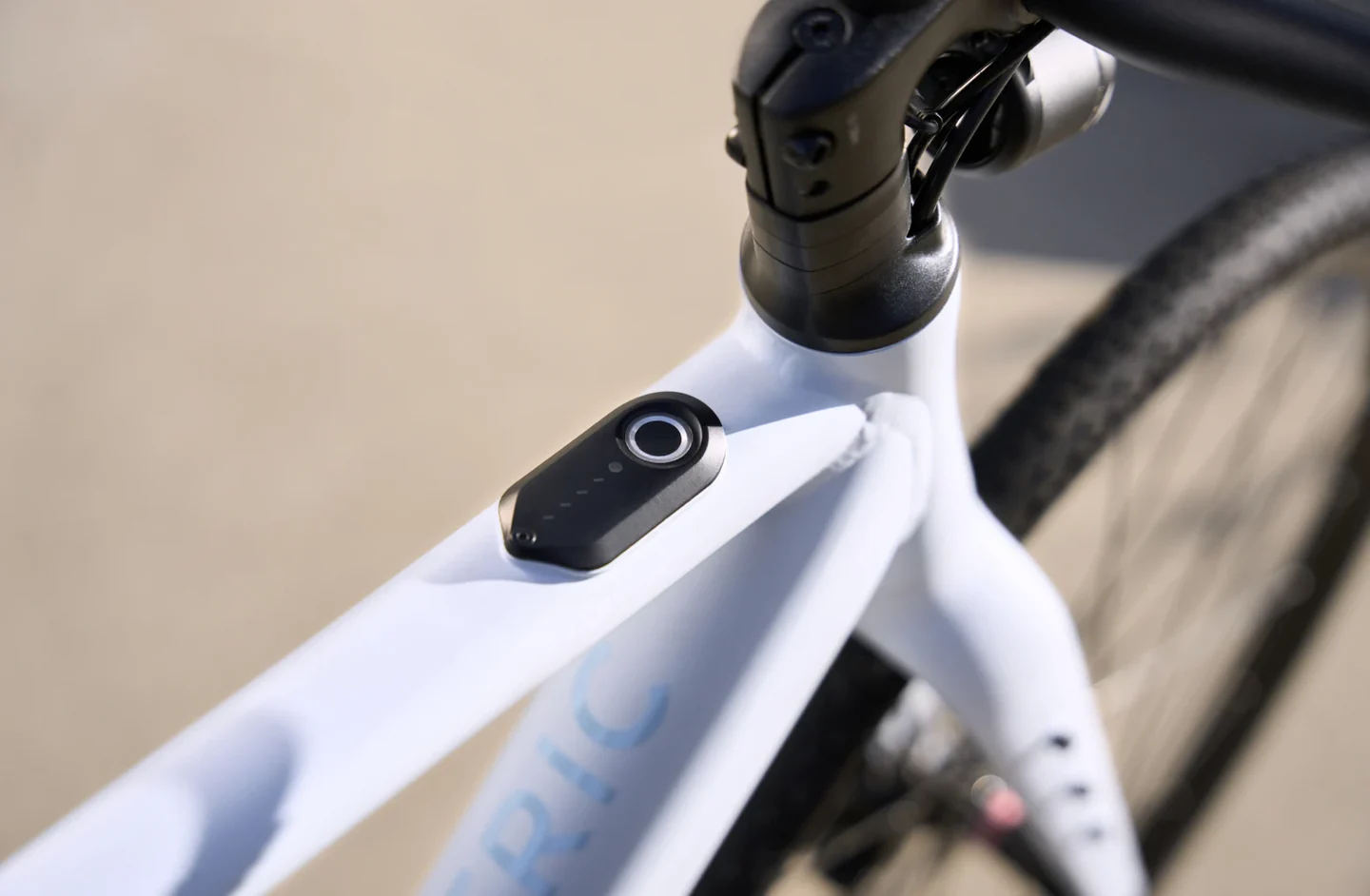

Control Panel	Fingerprint Unlock, Automatic Rider Recognition, Battery Indicator, PAS Indicator, Auto Headlight, Auto Brightness Control
Security	Theft Alert, GPS-Tracking, Fingerprint and Bluetooth Unlock

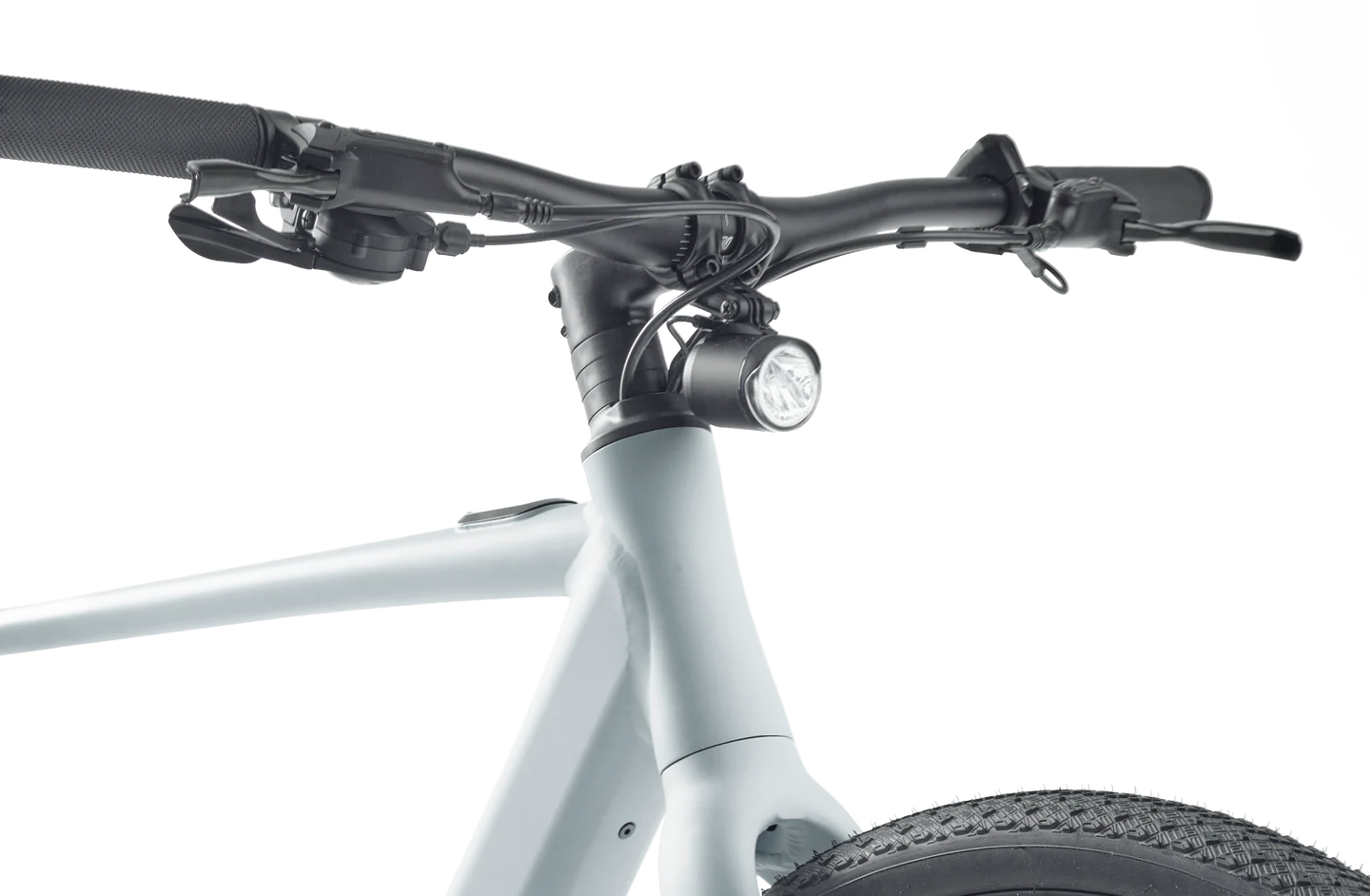

Headlight	Light Sensing, 6v/3w/45Lux High-Output Integrated LED, Adjustable Angle
Pedal Assist	Eco, Tour, Normal, Sport and Turbo Pedal Assist
Walk Mode	2.9 MPH
Water Resistant	IPX6

Wheel

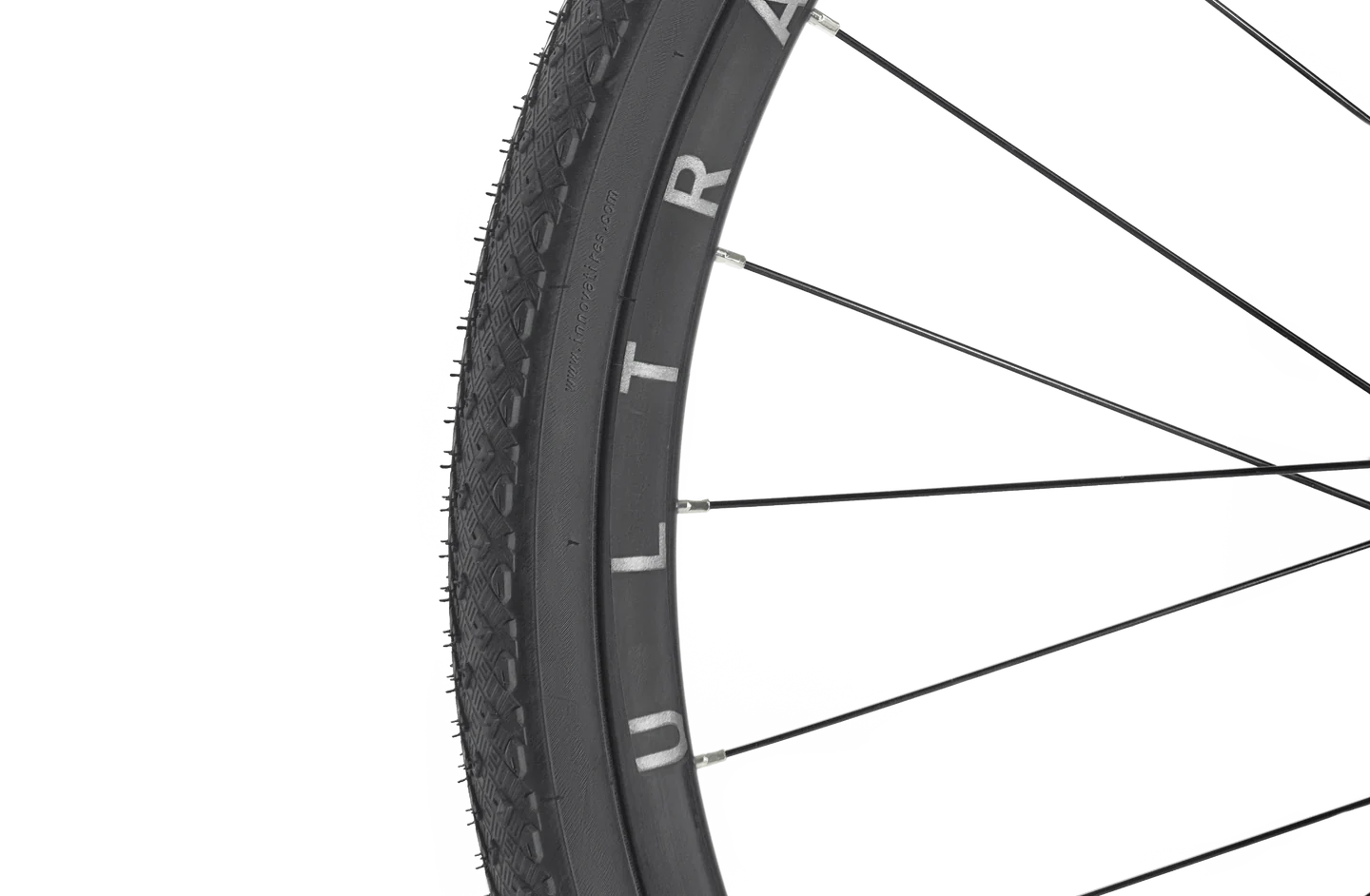

Rims	700c Disc, Double-Wall Aluminum Alloy, Pinned (F) 24 Hole / (R) 28 Hole
Front Hub	NOVATEC Aluminum Alloy J-Hook Disc Hub,12x100mm Thru-Axle
Tire	700x38c Ebike Puncture Resistant Tires

Supports

Phone Mount	Adapt GoPro/Garmin
Pedals	Aluminum Alloy
Kickstand	Aluminum Alloy

Accessories Section

Fenders	Supported, buy separately from VELOTRIC
Rear Rack	Supported, buy separately from VELOTRIC
Range Extender	36V, 4.9Ah, 176.4Wh

Frameset

Frame	6061 Triple-Butted Aluminum Alloy Frame, Integrated Cable Routing, Internal Battery, Flat Mount Disc, Rack and Fenders Compatible
Fork	6061 Aluminum Alloy, Internal Brake Routing, 12x100mm Thru-axle, 1-1/4” to 1-1/8” Tapered Steerer, Fenders Compatible

Speed & Range

Max Speed	20 MPH, Class 1
Default Speed (Unlock)	25 MPH
Max Range	Up to 70 miles
Chainrings	PROWHEEL Pro Aluminum Alloy, 40T Narrow Wide Chainring
Crankset	Aluminum Alloy, 170mm
Cassette	SHIMANO 8 Speeds, 12-32T
Rear Derailleur	SHIMANO M310-8
Shift Lever	SHIMANO M315-8
Chain	KMC Z8.3

Brake

Brake	TEKTRO HD-R280 Hydraulic Disc Brake
Rotors	160mm Front and Rear
Brake Levers	TEKTRO HD-R280 Aluminum Alloy, with adjustable reach

Cockpit

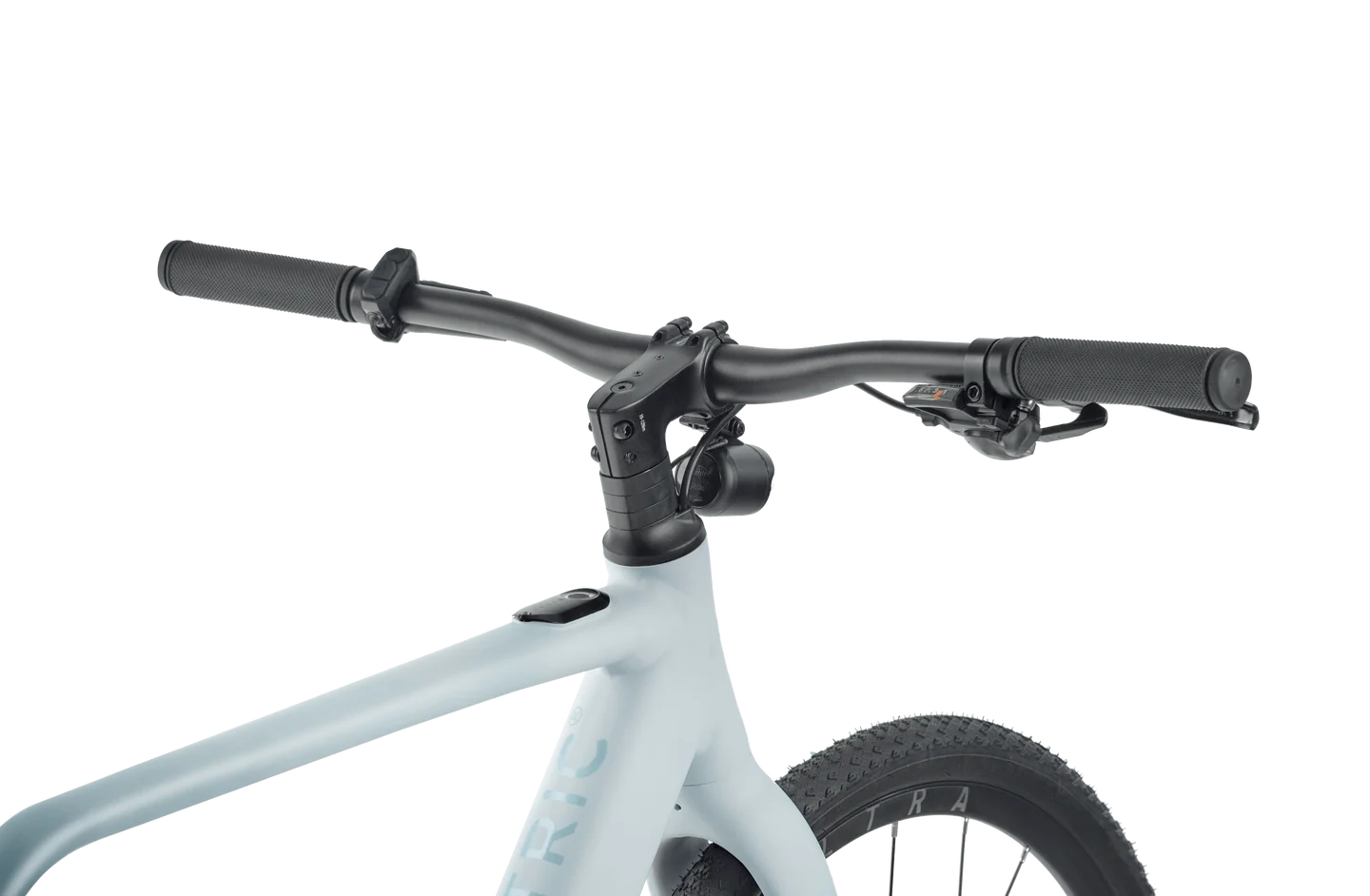

Handlebars	6061 Aluminum Alloy, Φ31.8mm, 680mm
Grips	VELOTRIC Sports Grips
Stem	6061 Aluminum Alloy, 3D-Forged Alloy, 8-Degree Rise, 31.8mm Clamp, Garmin Mount Compatible

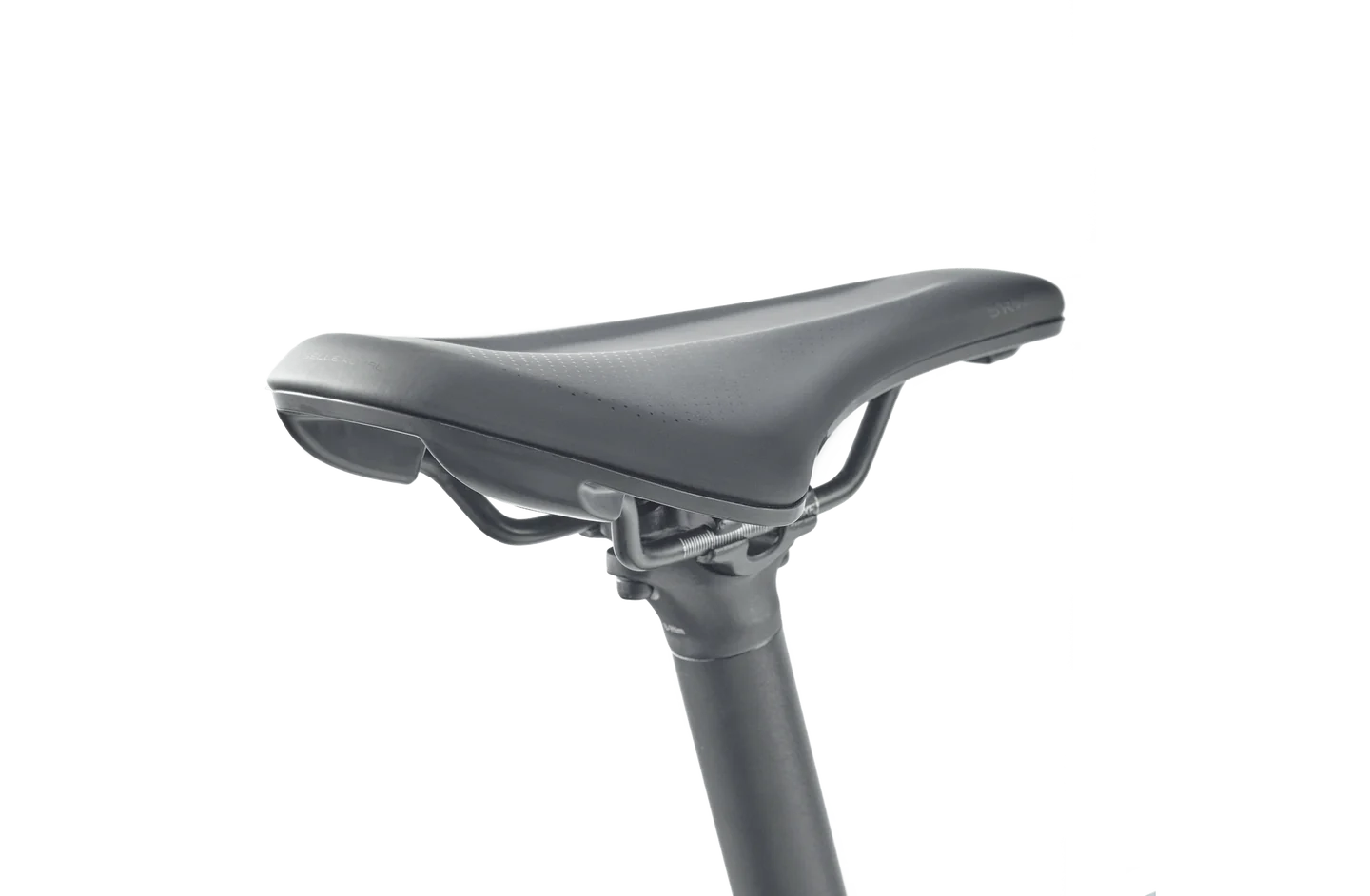

Saddle	SELLE ROYAL SRX
Seat Post	6061 Aluminum Alloy, 30.9 x 300mm

Weight & Load

Bike Weight	36lbs
Max Bike Load	330lbs
