Specifications

Electronics

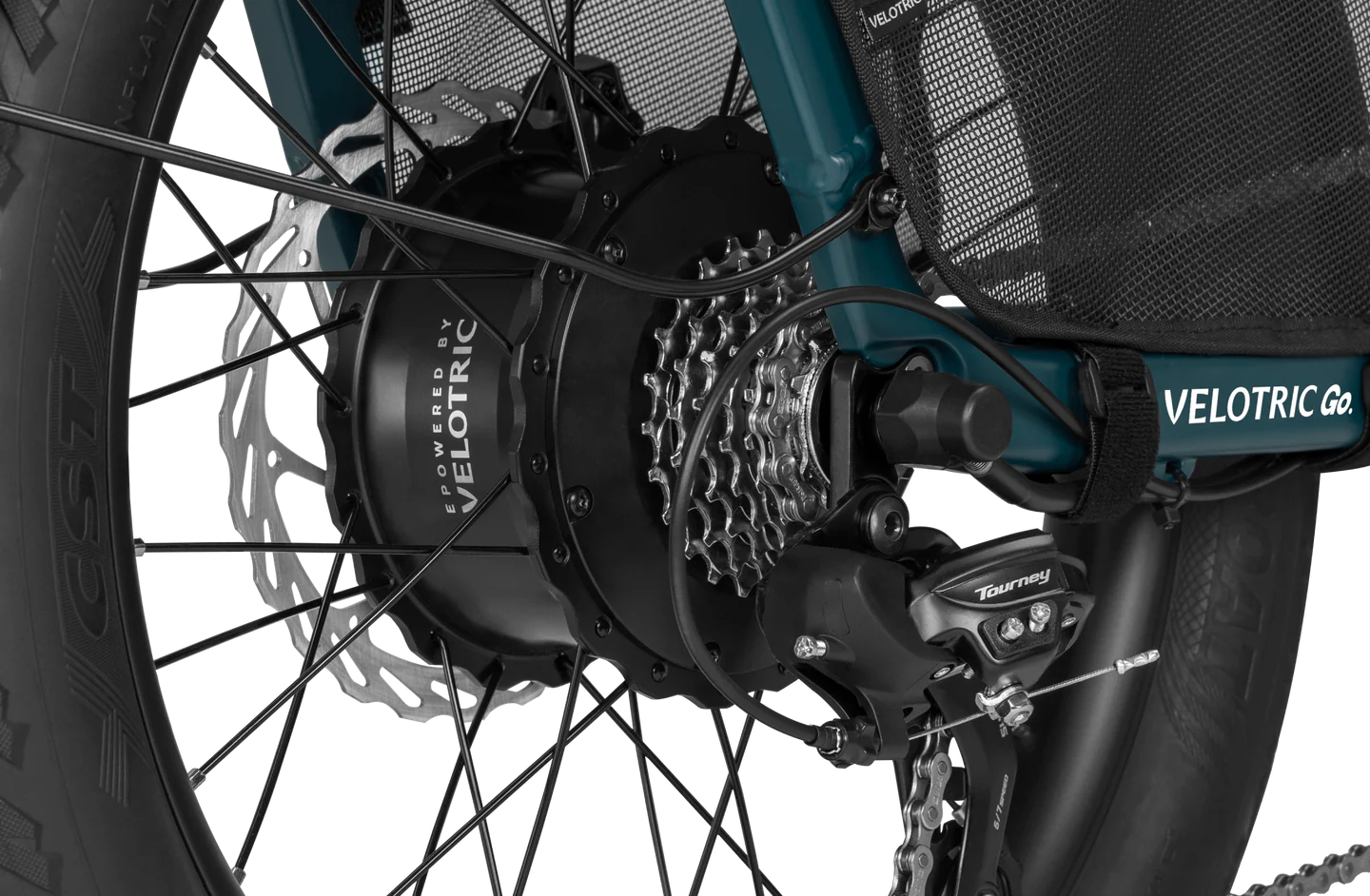

Motor Hub	500W (Peak 900W), 65Nm
Battery	48V, 14.4Ah, 691.2Wh
Cell	LG 21700
Charger	48V, 3A, Operates on 100V-240V AC, 50-60Hz
Charging Time	0-80% 4 Hours, 0-100% 6 Hours
Sensor	Cadence sensor
Display	3.5" Backlit LCD display with speed, trip, battery, assist Level and more
Security	Apple Find My™
USB Port	5V 500mA, output for external devices
Throttle Assist	Thumb-control, removable

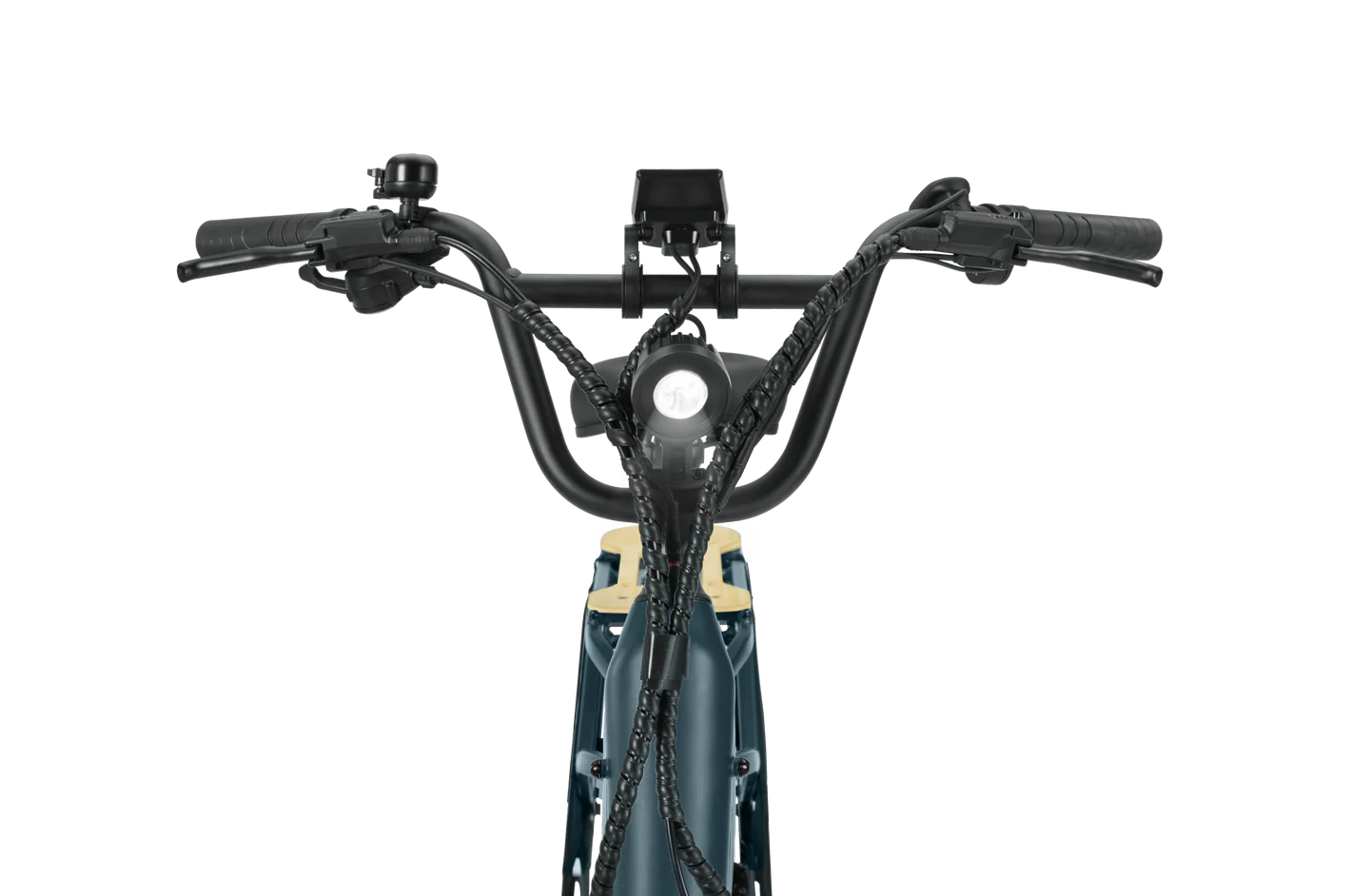

Headlight	12V/5W/130 Lux high-output integrated LED, 130lux, Adjustable angle

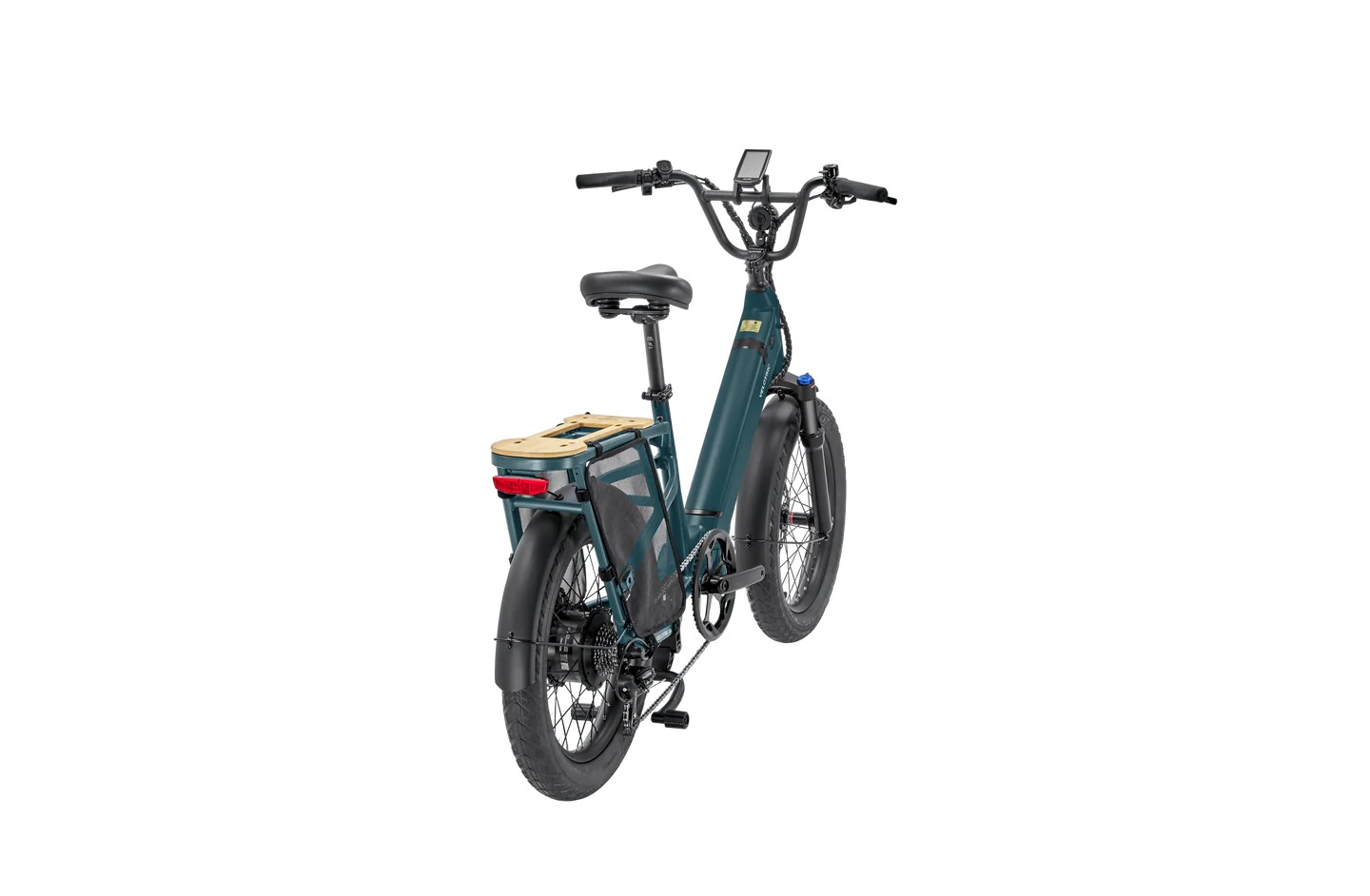

Tail Light	Integrated with rear rack, brake highlight
Pedal Assist	Eco, Tour, Normal, Sport and Turbo pedal assist
Walk Mode	2.9 MPH
Water Resistant	IPX6

Wheel

Rims	Double-wall Aluminum alloy, 20" disc × 36 hole
Front Hub	NOVATEC Aluminum alloy J-hook disc hub,15x110mm thru-axle
Tire	CST 20x3.0" Ebike puncture resistant tires

Supports

Fenders	Front and rear full coverage
Pedals	Plastic
Kickstand	Aluminum alloy, dual leg, spring loaded, center mount

Frameset

Frame	Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders
Fork	Hydraulic suspension with 60mm travel, 15x110mm thru-axle, with Lock-out

Speed & Range

Default Speed	20 MPH, Class 2
Max Speed (Unlock)	25 MPH
Throttle Range	Up to 48 miles
Pedal Assist Range	Up to 55 miles
Hill Grade	Throttle only: 8° (14%) Pedal Assist: 10° (18%)

Brake

Brake	Hydraulic Disc Brake 4-Piston
Rotors	180mm front and rear
Brake Levers	Aluminum Alloy, with adjustable reach and power cutoff switch

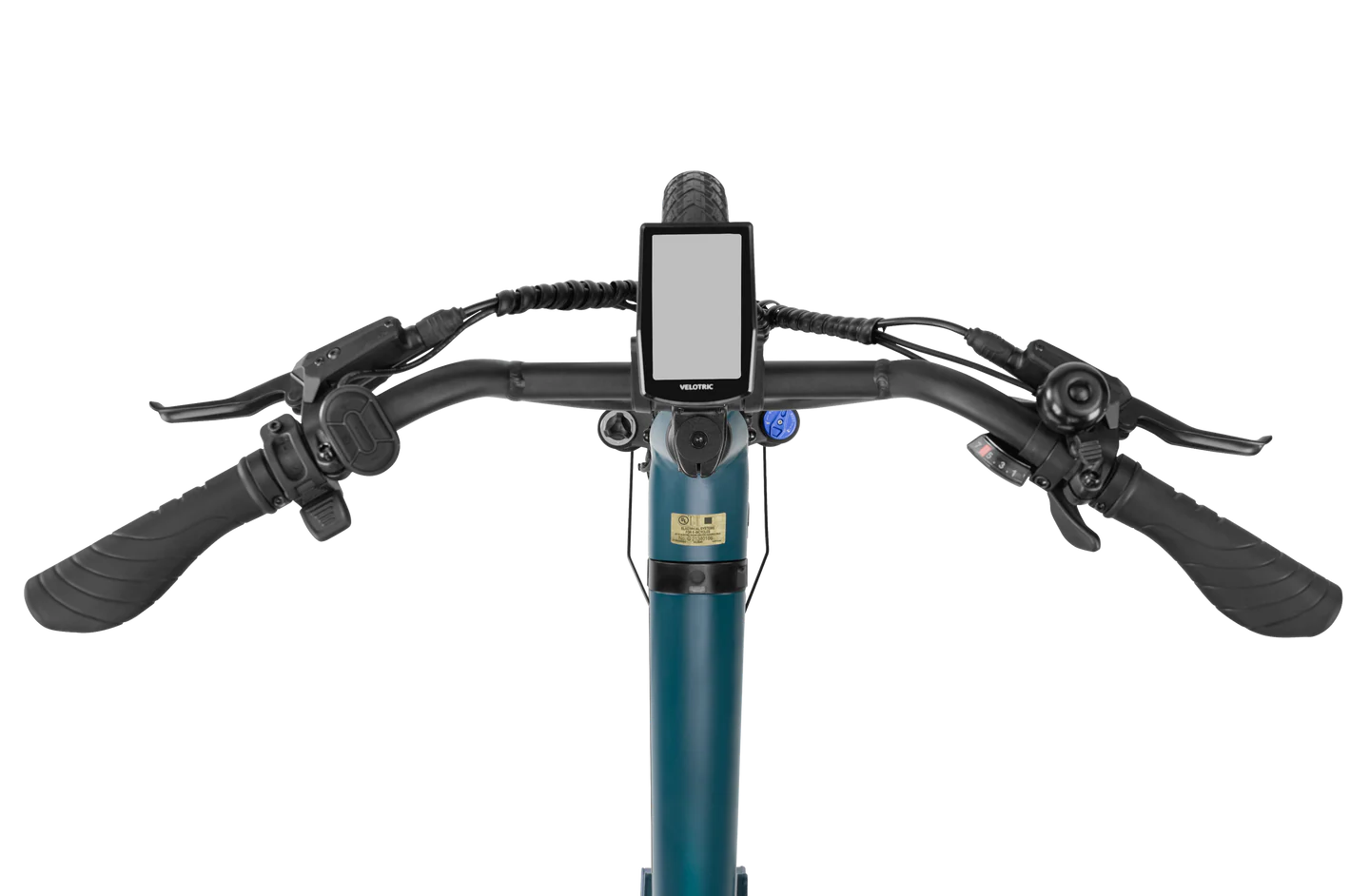

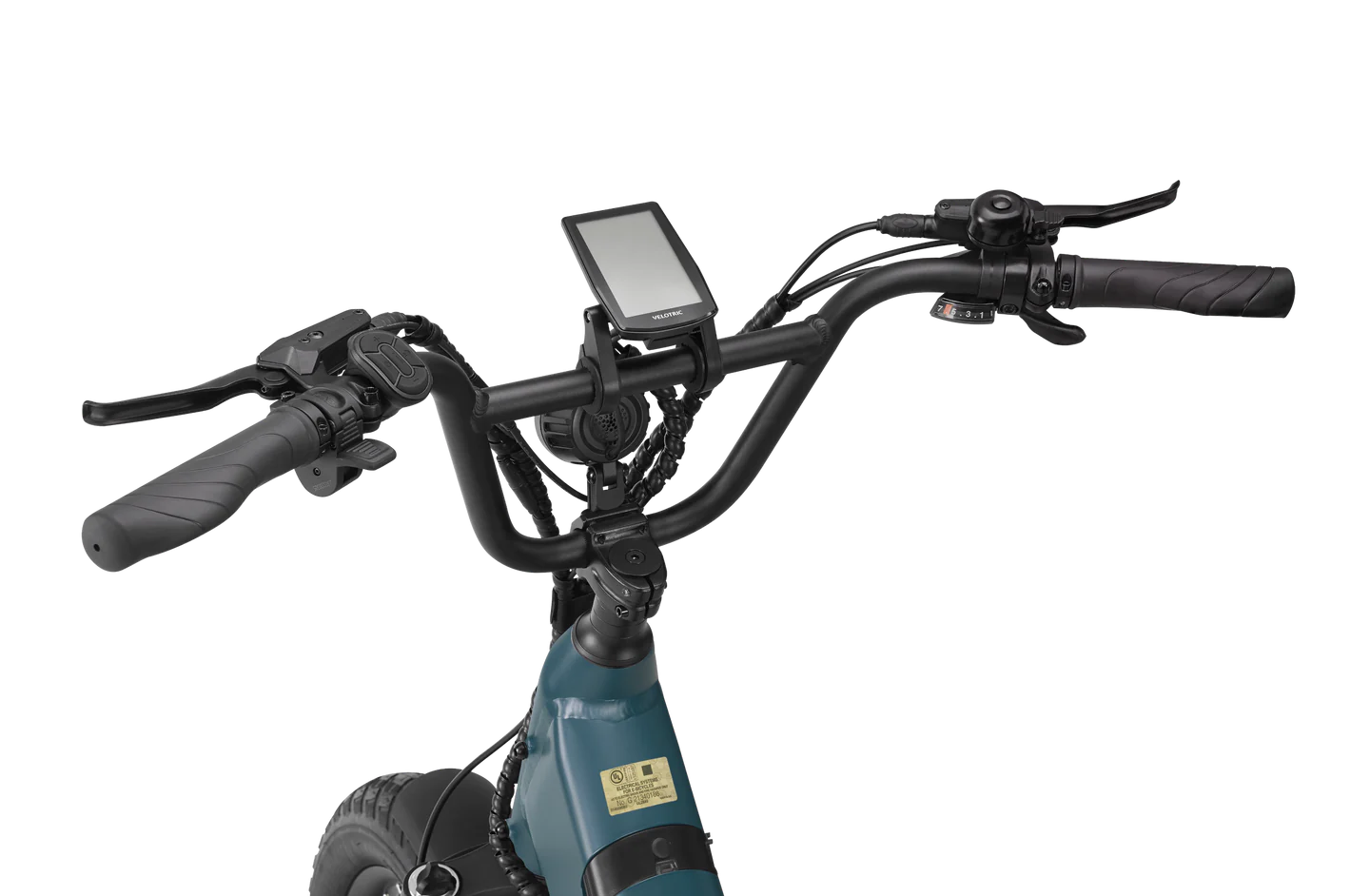

Cockpit

Handlebars	6061 Aluminum alloy, Φ25.4mm, 660mm
Grips	Durable ergonomic grips
Stem	6061 Aluminum alloy, 3D-forged alloy, 25.4mm clamp, 50mm length
Saddle	VELOTRIC urban comfort ergonomic seat
Seat Post	6061 Aluminum alloy, 30.4 x 400mm, quick release clamp

Weight & Load

Bike Weight	65lbs (29.4kg)

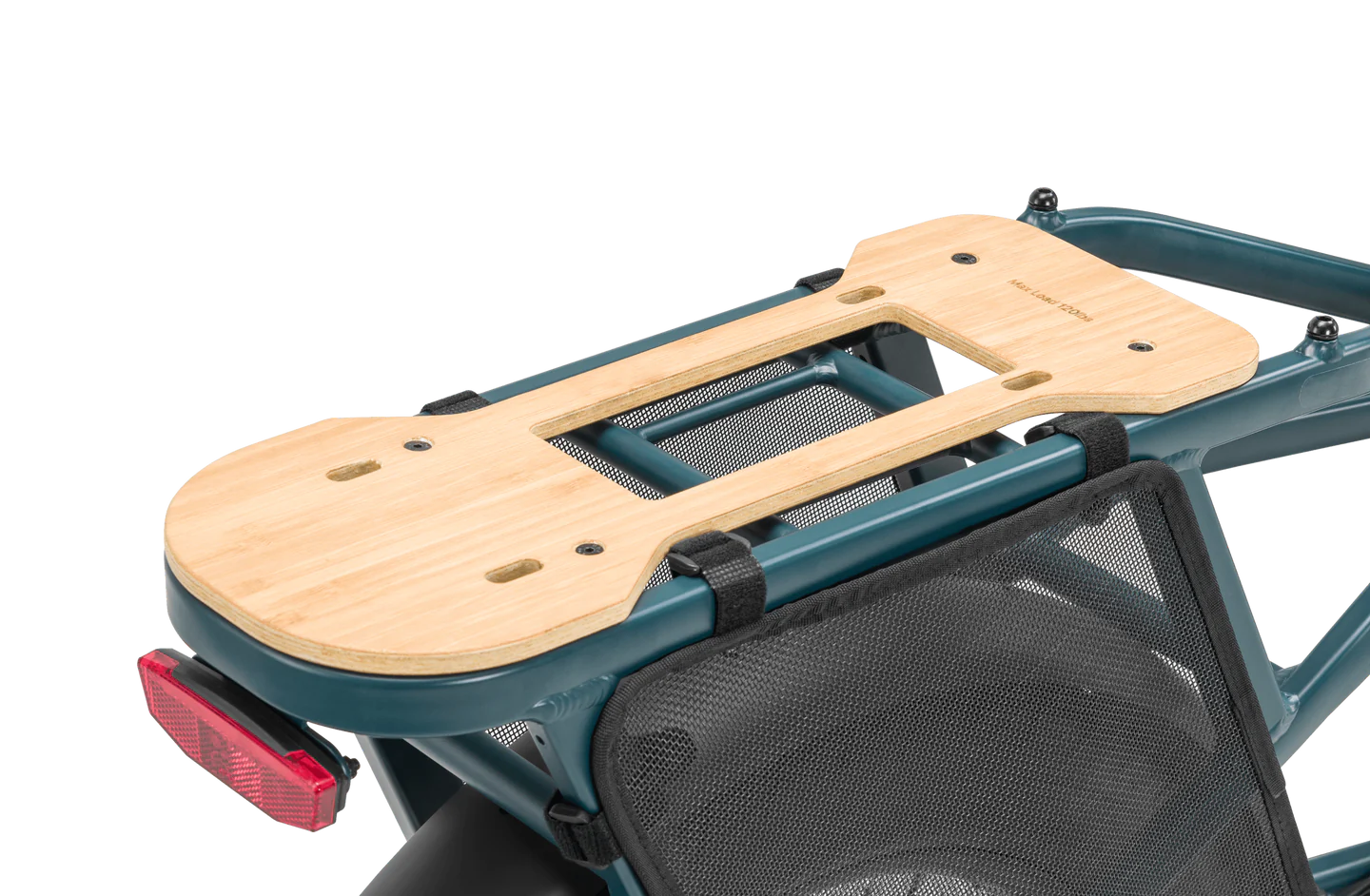

Rear Rack Load Capacity	120lbs (54kg)
Max Bike Load	440lbs
