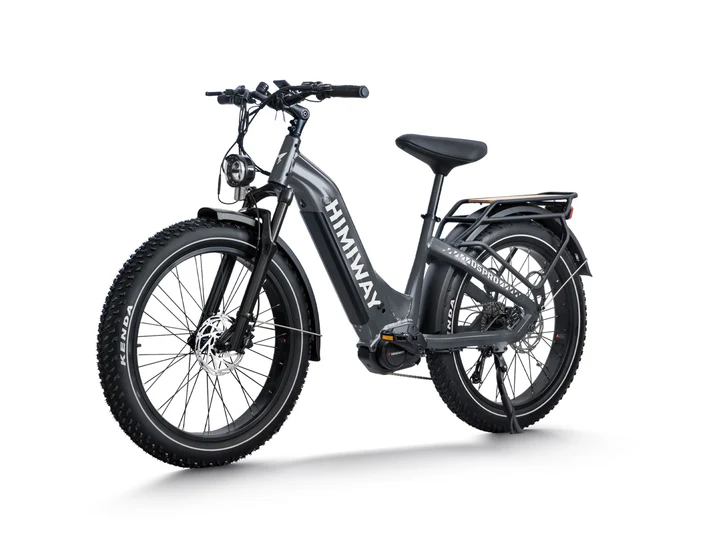

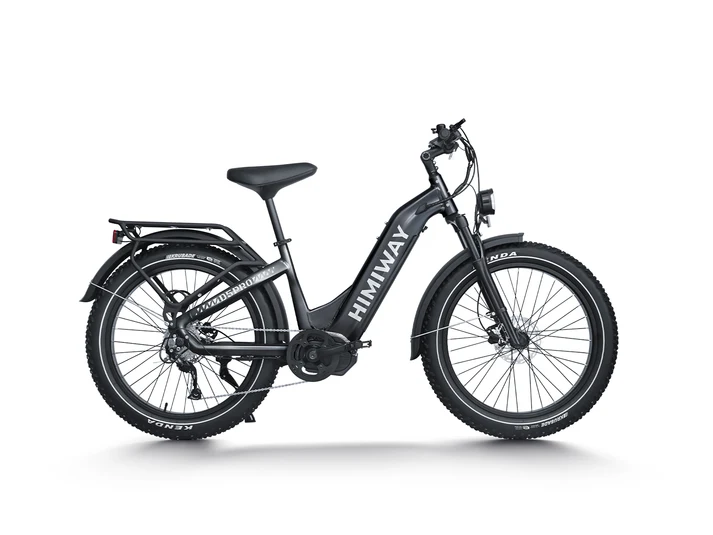

Himiway D5 Pro ST

MSRP:   $1,999.00

Highlights

Johnsburg, IL
Inquire for availability
New
Himiway
D5 Pro ST
Gray
E-Bike
Fat Tire
D5P

RECENTLY VIEWED

Rad_Power_Bikes_RadTrike

Rad Power Bikes RadTrike

MSRP:   $1,699.00

info specifications
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.

Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.

The torque-sensing mid-motor provides massive amounts of torque when powering up steep hills or accelerating quickly from a dead stop. With 1300W of peak motor power, you can easily conquer the most rugged terrains.

The D5 Pro torque sensor intelligently adjusts electric assist in real-time, ensuring efficient, controlled cycling. This precise modulation offers a smoother ride, conserving energy while enhancing rider safety and stability.

It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.

The e-bike features a removable built-in battery that is smartly designed to withstand dust, dirt, rain, and other environmental hazards. This ensures a longer battery life and a safer ride. The e-bike also looks more fashionable and modern, with a sleek and integrated battery that blends in with the frame. You don't have to worry about thieves stealing your battery, as it is securely locked inside the e-bike.

26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.

Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.

"Power through any adventure with the Himiway D5 Pro ST—Premium All-Terrain Step-Thru Electric Fat Bike built for performance and comfort!"


Specifications

Specification

Frame 6061 Aluminum frame
Headset Neco H156EM 28.6*44-56*30
Fork TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
Shock Alloy front suspension fork with lockout and adjustment
Front wheel Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
Rear wheel Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
Tires Kenda 26*4.0
Battery Samsung/LG 48V 20Ah
Motor 500W mid-drive motor
Display KD718-P LCD display with Type-c charger
Throttle Thumb throttle Zebra: Half twist throttle
Sensorsr Torque sensor丨shifting sensor speed sensor丨brake senso
Crankset Crankarm: Prowheel 170mm / Chain ring: 44T BCD104
Freewheel Shimano CS-HG201-9 11-36T
Chain KMC E9 EPT 124L
Groupset Shimano altus M2000 9 speed
Front brake Tektro HD-E350 hydraulic brake
Rear brake Tektro HD-E350 hydraulic brake
Rotors Tektro TR180-52 F:180mm R:180mm

Others

Range 60-80 miles
Controller 48V/22A
Charger US standard 3.0 A smart charger
Rider height 5'1" ~ 6'5"
Weight 79 lb. (with battery)
Max. payload capacity 400 lb.
