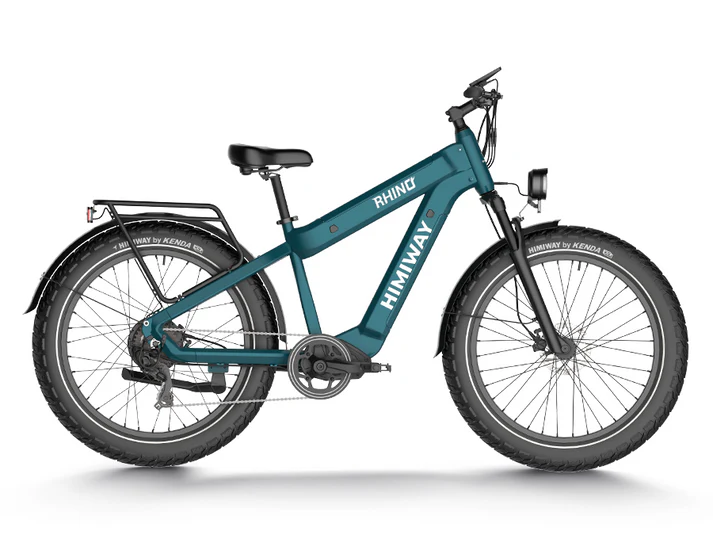

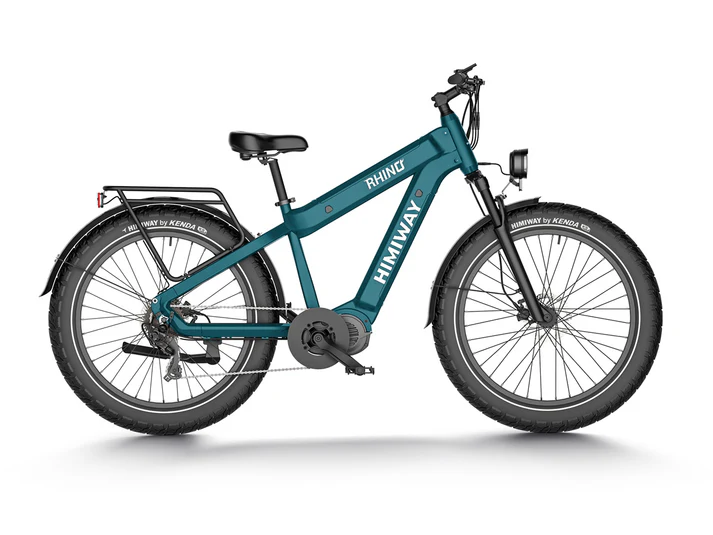

Himiway D5 Plus - Rhino

MSRP:   $1,999.00

Highlights

Johnsburg, IL
In Stock
New
Himiway
D5 Plus - Rhino
Midnight Forest
E-Bike
Mountain Bikes
D5PR

RECENTLY VIEWED

info specifications
If range anxiety is of concern to you, D5 Plus (Rhino) will get you covered with its 1440wh battery capacity. Battery density has increased by 21% from 18,650 to 21,700 cells, allowing you to ride up to 100 miles for a single charge. And worried about long charging times? It takes only 5 hours to get fully charged.
Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.

The Mid-drive motor with 160 Nm torques provides an immense amount of power when climbing hills and riding off-road. Coupled with torque sensors, power will be released precisely based on your pedal effort, ensuring your smooth riding experience.

The 1000W geared hub motor provides faster acceleration, stronger power, and better heat dissipation, making easier to conquer even the most rugged terrain.
The D5 Ultra(Rhino Pro) display is tailor-made for outdoor enthusiasts. With its black background and green and white text, it ensures that all figures will be visible even in the worst and darkest outdoor environments.When combined with the mid-drive motor, you can expect stronger power output but a better level of control from this beast.

The new LCD display is made of solid motherboard and is designed with waterproof and wear-resistant features, enabling it to work functionally under challenging conditions. This smart display can record various riding data and has been upgraded with some new features like automatic headlights.
All these upgraded components are designed to give a comfortable, smooth and safe riding experience on off-road and city roads.

Shimano 9/10 Speed Gear Shift System
The Shimano 9/10 speed gear shift system offers you more choice while riding in a variety of conditions. Using this system accurately can increase the range of a single charge by up to 15%.

180MM Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, the braking power won't decline for the next 5 years.

Customized Integrated Brake Light
The brake light with new Himiway logo will be activated automatic whenever you use the brake, which can prevent rear-end collisions while riding at night.

48V 500LM Luminosity Spotlight
The Himiway independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.

Rear Rack
The brand new rear rack is fully made of aluminum and has undergone heat treatment. compared with the wooden rear rack, it is more solid and durable, and has better moisture resistance.

Thumb Throttle
The thumb throttle are designed for professional cycling enthusiast. Your both hands are more capable of keeping the balance of Himiway Rhino/Rhino pro.

Selle Royal Saddle
The Selle Royal Saddle features a comfortable and ergonomic design specially made for pressure relief. Enjoy healthy & happy long-distance riding!

"Power Meets Endurance: Conquer Any Terrain with the Himiway D5 Plus Rhino!"

Specifications

Specification

Frame 6061 Aluminum frame
Headset Neco H148 28.6"44*44*30mm
Fork TRAMA FAT34-PLS 26 Air Spring 100mm travel 15*150mm thru axle D5 Plus: TRAMA FAT34-PLS 26 Coil Spring 100mm travel 15*150mm thru axle
Shock Alloy front suspension fork with lockout and adjustment
Front wheel Rim：MD242 26*12G*36 | Spoke：12G 256/257L | Hub：M104F-150 12G*150
Rear wheel Rim：MD242 26*12G*36 | Spoke：12G 256/257L | Hub：MB019R-190F-GM14
Tires Kenda X Himiway K1277 26*4.5
Battery 48V 15Ah*2
Motor 1000W mid-drive motor D5 Plus: 1000W brushless gear motor
Display LCD display with Type-c charger
Throttle Thumb throttle
Sensors Torque sensor丨shifting sensor | speed sensor丨brake sensor D5 Plus: Torque sensor丨speed sensor丨brake sensor
Crankset Crank arm: Bafang 170mm | Chain ring: 44T D5 Plus: Crank arm: EB-01-242A-S1 forged alloy 170mm | Chain ring: 44T
Cassette Shimano CS-HG500-10 11--34T D5 Plus: Shimano CS-HG201-9 11-36
Chain KMC E10S-EPT 124L D5 Plus: KMC E9-S EPT 124L
Groupset Shiminao deore 10 speed
Front brake Tektro HD-E350 hydraulic brake
Rear brake Tektro HD-E350 hydraulic brake
Rotors Tektro TR180-24 F:180mm R:180mm

Components

Stem TDS-D704-8FOV/ISO-M 28.6*90*31.8
Handlebar MTB-AL-312BT FOV/ISO-M/AL/BACK SWEEP:6° 31.8mm*22.2mm*700W
Seatpost ALLOY 30.4*350mm
Saddle Himwiay TTZ032X saddle
Pedal Aluminum pedal
Lights 48V LED light
Kickstand Heavy-duty aluminum kickstand

Others

Range 80-110 miles
Controller 48V/25A
Charger US standard 3.0 A smart charger
Rider height 5'3" ~ 6'4"
Weight 97 lb. (with battery)
Max. payload capacity 400 lb.

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
