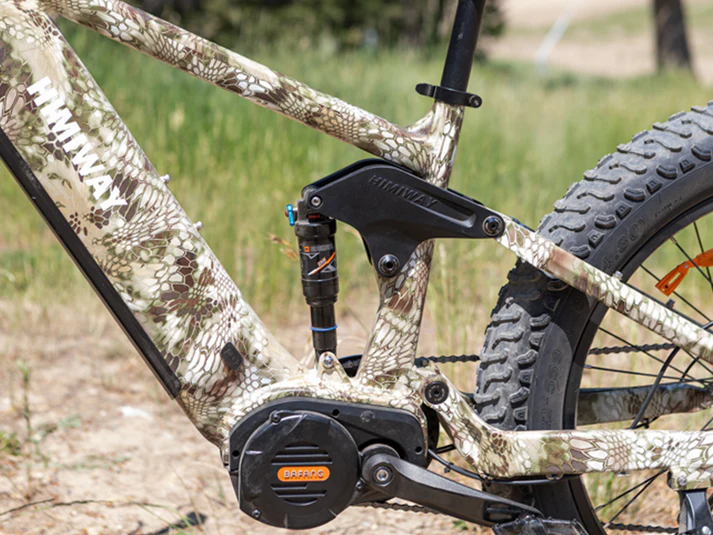

Himiway Cobra Pro is tailor-made for off-road enthusiasts. It is equipped with the Bafang mid-drive motor, which is considered one of the leading manufacturers of electronic drive systems. A 1300W of peak motor power will lead you conquer the roughest venture. A four-bar link suspension system with a four-sided polygon design promotes superior vibration absorption. As the first middle-class e-bike on the U.S. market with four-bar linkage suspension, Himiway Cobra Pro keeps you safe and give you the best riding experience on your toughest exploration.
The torque-sensing mid-motor provides massive amounts of torque when powering up steep hills or accelerating quickly from a dead stop. With 1300W of peak motor power, you can easily conquer the most rugged terrains.
The intuitive torque sensor seamlessly amplifies your pedaling efforts, providing a more natural riding experience while conserving battery life and extending riding range.
It is the first e-bike on the U.S. market with four-bar linkage suspension technology, complemented with 4.8” CST fat tires, these specialize in absorbing both rear-upward force and vibrations, which allows you to ride safely over rutted trails, deep snow, and soft sand without taxing the rider.
The 6061 aluminum alloy frame offers excellent strength and durability while remaining lightweight, allowing you to easily maneuver the bicycle. It also possesses good corrosion resistance and anti-oxidation properties, ensuring that the frame stays fresh and durable over extended periods.
500LM Luminosity Spotlight
Experience heightened visibility during nighttime rides, ensuring your safety without compromise.
220mm Travel Suspension
With 220mm of available compression, it is the perfect fit for your chosen terrain.
Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
10 Speed Gear Shift System
The Shimano 10 speed gear shift system offers you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find the speed that suits your journey. Using this system accurately can increase the range of a single charge by up to 15%.
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60
miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
Easily see your speed, distance traveled, trip time, battery level, and more on the backlit Smart LCD display.
The 26 X4.8 CST all-terrain fat tires are the biggest fat tires in the U.S. e-bike market, providing upgraded grip and traction on rugged roads. Even in the most challenging terrains and weather conditions, these fat tires guarantee your safety and offer you an smooth and easy riding experience.
Front Suspension
The DASH-AIR-20 inverted fork increases the suspension travel from 95 mm to an impressive 150 mm, which greatly enhances the e-bike's ability to absorb shock. Say goodbye to jarring bumps and hello to a smoother, more comfortable ride. And the DASH-AIR-20 inverted fork is more durable than spring forks.
Thumb Throttle
The thumb throttle are designed for professional cycling enthusiast. Your both hands are more capable of keeping the balance of Himiway Cobra pro.
Selle Royal Saddle
The Selle Royal Saddle features a comfortable design specially made for pressure relief.
"Dominate the trails with the Himiway D7 Pro (Cobra Pro) Softail Electric Mountain Bike—power, precision, and performance for every adventure!"
Specifications
Specification
| Frame |
6061 Aluminum frame |
| Headset |
Neco H383AE 28.6×44*56×30mm |
| Fork |
KKE R150S coil spring fork compression/Rebound adjustable 220mm travel 15*150mm thru axle |
| Shock |
ROCKSHOX deluxe select+ 190*45mm |
| Front wheel |
M9CF-150 12G*150*15mm 26'' 36h |
| Rear wheel |
M9ZR-197 12G*197*12mm 26'' 36h |
| Tires |
CST roly poly 26*4.8 |
| Battery |
Samsung/LG 48V 20Ah |
| Motor |
BaFang M620 1000W mid-drive motor |
| Display |
BaFang DP C18 LCD display |
| Throttle |
Thumb throttle |
| Sensors |
Torque sensor丨shifting sensor丨speed sensor丨brake sensor |
| Crankset |
Crank arm: M620 (Fat) 170mm | Chain ring: 38T 104BCD narrow wide chainring |
| Cassette |
Shimano cues CS-LG400-10 11-48T |
| Chain |
KMC eglide 130L |
| Groupset |
Shimano cues U6000 10 speed |
| Front brake |
Tektro HD-E730 4-piston hydraulic brake |
| Rear brake |
Tektro HD-E730 4-piston hydraulic brake |
| Rotors |
F: TR203-17 R: TR180-17 |
Components
| Stem |
3D forged alloy Ext:50mm |
| Handlebar |
Promax HB-3188DB -W780 |
| Seatpost |
Exa speed-up 30.9*500mm 150mm travel |
| Saddle |
Selle royal vivo |
| Pedal |
Wellgo B087B |
| Lights |
48V LED light |
| Kickstand |
Heavy-duty aluminum kickstand |
Others
| Range |
60-80 miles |
| Controller |
48V/30A |
| Charger |
US standard 3.0 A smart charger |
| Rider height |
5′3″ ~ 6′5″ |
| Weight |
88.6 lb. (with battery) |
| Max. payload capacity |
400 lb. |
